@ Power Portable Sprayers

Brass casing
3 sets of double action O.H.V.
Aluminum alloy gravity crankcase
Chemical resistant, anti-corrosion rust free
80kgs high pressure designed

@ @ @
@ @ @
@

SPECIFICATION

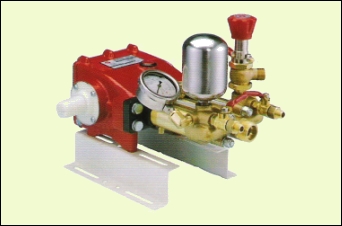

@ Model SBH-280
@ Plunger dia. 22 mm
@ Stroke 20 mm
@ Plunger number 3
@ Rotation capacity 600-1000 r.p.m
@ Suction capacity 13.6-22.8 L/min
@ Pressure Max 84 Bar / 1200 psi
@ Working 70 Bar / 1000 psi
@ Power required 2-3 HP
@ Gasoline engine 5-6 PS
@ Pulley (Standard) 8"xA2
@ LxWxH 42x29x32 (cm)
@ Weight 13 kgs
@ @ @ @
@

Accessories:
1) Suction Hose x 1pc
2) Overflow x 1pc
3) Strainer x 1pc
4) Pulley x 1pc
5) Tool kits x 1set

@

@

@

@
